WPC Door Production Line/ PVC Wood and Plastic Composite Door Panel Production Making Machine /WPC Door Extrusion Line Supplier

Name: WPC Door Production Line PVC Wood and Plastic Composite Door Panel Production Making Machine WPC Door Extrusion Line Supplier
Brand: HYPET
Price: 85580 USD

Quality WPC Door Production Line/ PVC Wood and Plastic Composite Door Panel Production Making Machine /WPC Door Extrusion Line Supplier for sale

Brand Name : HYPET

Model Number : HYYF1000- 95 WPC Door Panel

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Price : USD85580/SET

Payment Terms : L/C,T/T

Supply Ability : 100SET/YEAR

Delivery Time : 60-75DAYS

Packaging Details : FILM / WOODEN CASE

Final product : WPC door Panel

Extruder model : ZS95/188

Extruder type : Conic twin screw extruder

Control system : PLC with touch screen

Motor/Inverter : Siemens/ABB/China top brand

Processing material : PVC Composite powder

Engineer installation service : YES

Output : 700kg/h

Contact Now

Product Description

WPC Door Production Line/ PVC Wood and Plastic Composite Door Panel Production Making Machine /WPC Door Extrusion Line Supplier

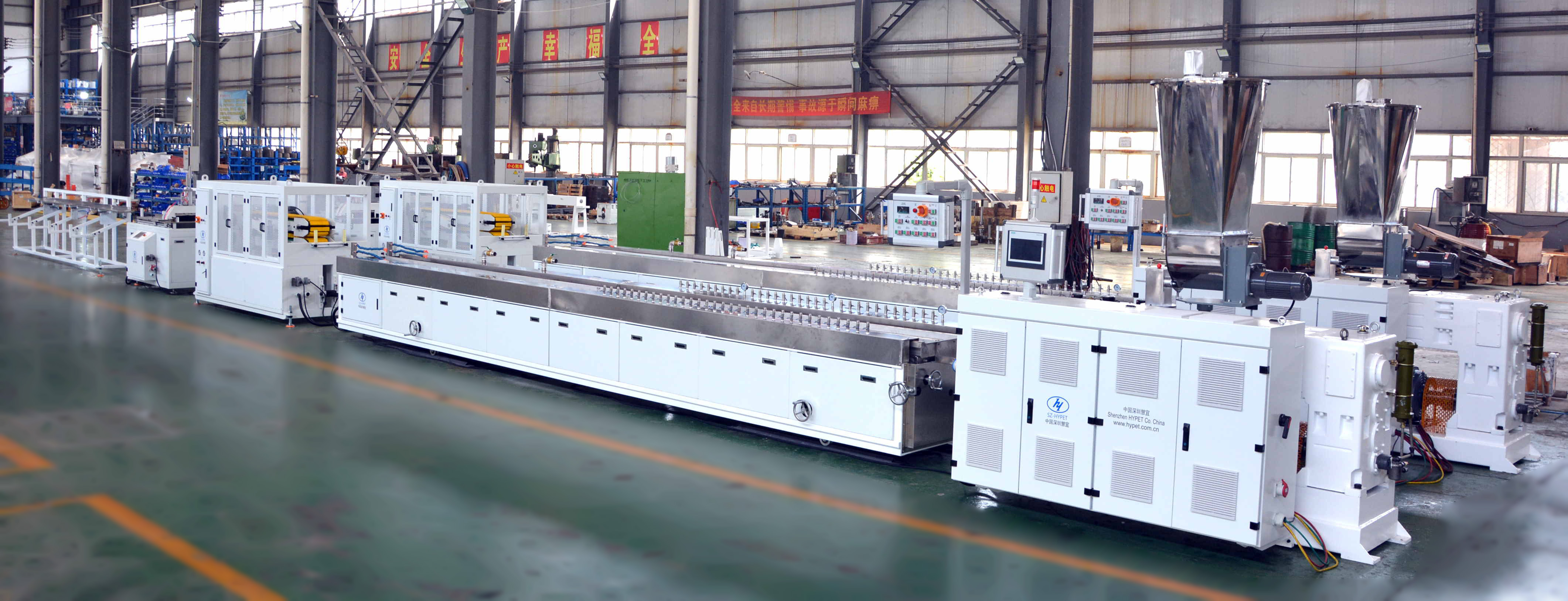

PVC-WPC DOOR PRODUCTION LINE MAX 1000mm WIDTH

Offer WPC door plant turnkey project solution. Owned 9 years experience in WPC door plant running.
One month at least 3000 sets of door can be produced.
China top 10 WPC Door Machine Supplier.

SN	WPC door turnkey project : Output 300 doors /day	Price
	Raw material: PVC + Wood+ CaCo3+ Chemicals mixed
A	Raw material processing machine
1	Mixer 800/2500 1100-1300kg/h for Door raw material mixing	$34,000
2	Mixer 500/1000 700-800kg/h for Frame & Cover raw material mixing	$15,800
3	3tons Stir Silo for mixed WPC powder *2 (one is for door, the other for frame /cover)	$7,900

B	Production Lines
1	HYYF1000-95 WPC Door Panel Line	$108,000
2	HYYF300-65 WPC Door Frame Line *2	$78,000
3	HYYF110-51 WPC Frame L Shape Cover Line	$29,380

C	Auxiliary Machine for door and frame
1	Polish machine for door surface sand polish	$11,300
2	Hot laminating machine for door	$39,500
4	Hot laminating machine for frame & cover	$16,900
5	CNC pattern design machine for different design carving	$9,800
6	Door glue coating machine	$1,960
7	Vacuum forming machine for door	$11,000
8	Four sides precise cutter with conveyors	$42,300
9	Edge banding machine	$8,500
10	Frame 45 degree cutter	$16,800
11	Lock & hinge slotting machine *2 (one for door, the other for frame /cover)	$12,200
12	Screw type loaders *5 (Two for mixers, Three for production lines)	$3,900

D	Molds
1	900*45mm door panel mold Without Calibrator	$14,200
2	800*45mm door panel mold Without Calibrator	$13,200
3	700*45mm door panel mold Without Calibrator	$12,200
4	Door pane calibrator & water cooling box	$15,500
5	240-300mm Door frame mold	$6,500
6	120-200mm Door frame mold	$5,300
7	60*70mm L Cover mold	$3,800
	Total WPC door plant machinery investment cost	$518,360

E	Option assistant machinery for factory
1	HYG50- strong Crusher for recycling	$8,800
2	HYS4100 single Shaft shredder four recycling	$25,800
3	Puliverizer SMP500 recycle material into powder	$6,800
4	20 HP Chiller +100 tons cooling tower	$8,170
5	30 HP Screw type air compressor	$7,188

WPC door processing flow

1. Wood powder makingNature wood--Crush into scrap--Mill to powder--Drying
2. Raw material mixing
All material (PVC, CaCo3, Wooden powder and chemical agents) Mixing and stock in material dryer
3. Panel Production
Make the big door panel in mold width and request length.
4. Precise cutting
Cutting the door in exactly request size
5. Polishing
Brush the surface to smooth.
6. CNC design
Carve different pattern on the door panel surface
7. Hot-stamp & Lamination & Painting
Three way to handle the panel surface for option. hot-stamping & Lamination &Painting.
8. Top & Bottom carving and seal
Carving a round hole and seal it with our suitable strip.
9. Packaging.
Package and ready for delivery.

Recommend Products

SN	PVC Twin Conic Screw Extruder	Output	Price
1	ZS35/80- main motor 7kw Extruder machine	50-70kg/h	$11,500
2	ZS45/100-main motor18kw Extruder machine	60-100kg/h	$13,200
3	ZS51/110-main motor22kw Extruder machine	80-125kg/h	$13,800
4	ZS55/120-main motor30kw Extruder machine	150-220kg/h	$15,200
5	ZS65/132-main motor37kw Extruder machine	220-300kg/h	$17,000
6	ZS65/132-main motor45kw Extruder machine	300-400kg/h	$18,500
7	ZS80/156-main motor55kw Extruder machine	450-500kg/h	$26,900
8	ZS80/173-main motor75kw Extruder machine	500-600kg/h	$31,500
9	ZS95/188-main motor110kw Extruder machine	700-850kg/h	$42,800

Item	Suitable Extruder	Type	Price
Screw & Barrel	For ZS55/120 Conic Twin Screw Extruder	A	$2580
	For ZS55/120 Conic Twin Screw Extruder	B	$2650
	For ZS55/120 Conic Twin Screw Extruder	C	$3100
	For ZS65/132 Conic Twin Screw Extruder	A	$2950
	For ZS65/132 Conic Twin Screw Extruder	B	$3150
	For ZS65/132 Conic Twin Screw Extruder	C	$3600
	For ZS80/156 Conic Twin Screw Extruder	A	$5800
	For ZS80/156 Conic Twin Screw Extruder	B	$6300
	For ZS80/156 Conic Twin Screw Extruder	C	$6800
Gear box	For ZS55/120 Conic Twin Screw Extruder	Vertical	$3050
	For ZS65/132-37 Conic Twin Screw Extruder		$3235
	For ZS65/132-45 Conic Twin Screw Extruder		$3350
	For ZS80/156 Conic Twin Screw Extruder		$4675
